PIONEER XY-215S ZVUČNIK

Features

• A quasi-bandpass subwoofer with two 15-inch LF drivers.
• High-response deep bass as low as 42 Hz is delivered to reproduce a tight and punchy kick.
• Two drivers efficiently generate air vibration to boost radiation efficiency.
• Requires an active crossover to set the necessary frequency range (presets can be provided from Pioneer for combinations using the Pioneer XY-152, XY-122, XY-101 and XY-81).
• NL4 INPUT and LINK OUT connections as standard.
• Robust enclosure made from premium multi-laminate birch plywood.

Specification

• Enclosure Type: Dual driver, quasi-bandpass subwoofer
• Frequency Response: 42 Hz to 160 Hz
• Sensitivity (1 W/1 m): 102 dB (half space)
• Nominal Impedance: 4 Ω
• Power Handling: 800 W RMS, 1600 W Program
• Maximum SPL: 131 dB cont., 137 dB peak (half space)
• Dispersion:         -
• Driver Configuration: 2 × 15 inch (380 mm) LF cone drivers
• Crossover:         -

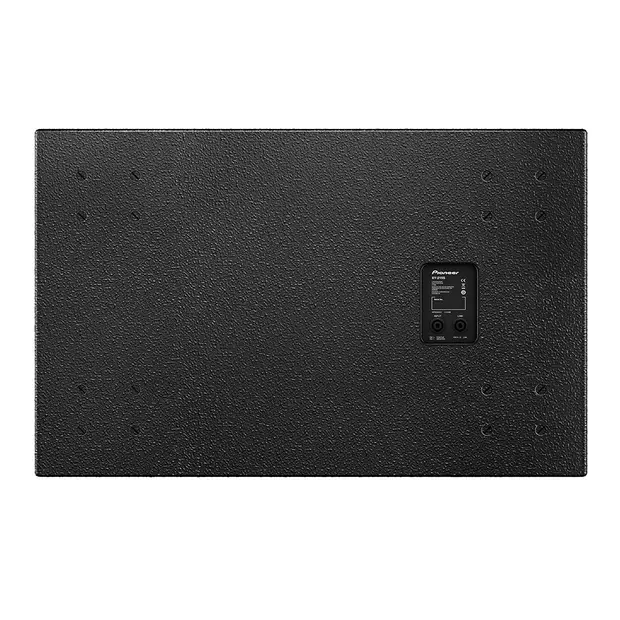

• Connectors: 2 × Neutrik SpeakON™ NL4
• Dimensions (W×H×D): 831 × 526 × 700 mm
                                   (32.7 × 20.7 × 27.6-inch)
• Weight: 71 kg (156.6 lbs)
• Rigging and Hardware: 4 × flush handles,
                                   2 × M20 polemount sockets for mid/high                                            enclosures,
                                   8 × rubber feet (bottom and left)                                                        and 4 ×mating recesses (top),
                                 16 × M8 holes with pre-inserted bolts for                                               4 × castors on rear

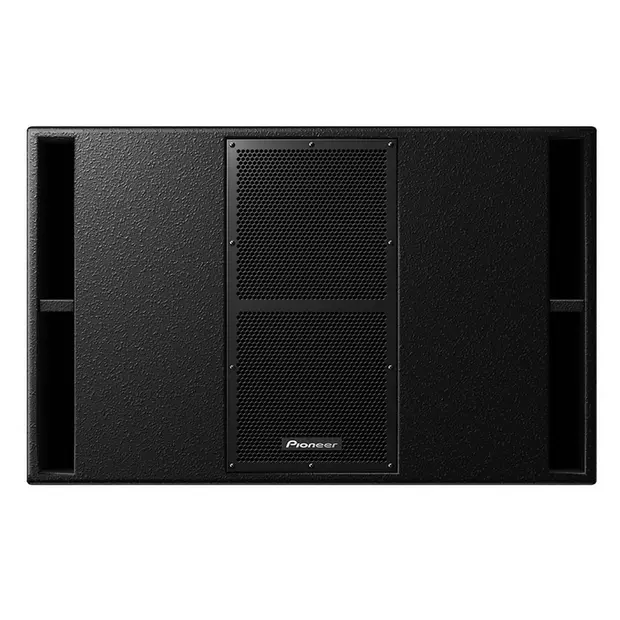

• Grille: Hex punched steel
• Enclosure: 18 mm (0.7-inch) birch plywood
• Finish: Impact-resistant, Black semi-matt textured
• Suggested Power Amplifier: Recommended : K3DSP
• Minimum : K2DSP
• Accessories: 2 x polemount socket cover
                     (-W model only)
