PIONEER XY-118S-W PRO AUDIO ZVUČNIK

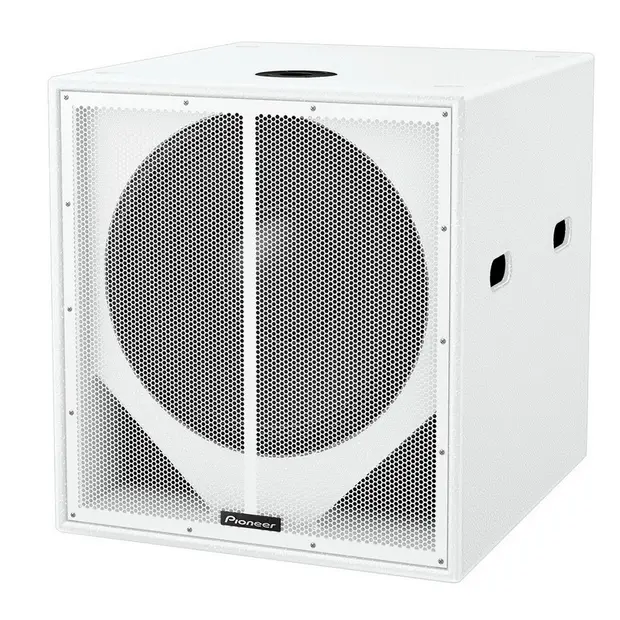

Pioneer Pro Audio XY-118S 18-Inch Bass Reflex Subwoofer, White

18” bass reflex subwoofer

Key Features

• High-power subwoofer with an 18-inch, low-frequency driver.
• Capable of reproducing deep bass as low as 35 Hz without distortion.
• Strong pillars installed in the cabinet ensure rigidity against the most powerful bass.
• Requires an active crossover to set the necessary frequency range (presets can be provided from Pioneer for combinations using the Pioneer XY-152, XY-122, XY-101 and XY-81).
• NL4 INPUT and LINK OUT connections as standard.
• Pole mount for quick set-up with other Pioneer products.
• Robust enclosure made from premium multi-laminate birch plywood.

Technical Specifications

Enclosure Type
Single driver, reflex-loaded subwoofer
Rigging and Hardware
4 × flush handles (2 left/2 right),
1 × M20 polemount socket for mid/high enclosures,
4 × rubber feet (bottom) and 4 ×mating recesses (top),
16 × M8 threaded points for 4 ×castors on rear
Grille
Hex punched steel
Enclosure
18 mm (0.7-inch) birch plywood
Finish
Impact-resistant, Black semi-matt textured
Frequency response
35 Hz to 150 Hz
Sensitivity (1W/1m)
97 dB (half space)
Nominal Impedance
8 OHM
Power Handling
1000 W RMS, 2000 W Program
Power Handling AES
127 dB cont., 133 dB peak (half space)
Transformer taps
18 inch (460 mm) LF cone driver
Dispersion
2 × Neutrik SpeakON NL4
Dimensions ( W x H x D)
590 × 643 × 650 mm
(23.2 × 25.3 × 25.6-inch)
Weight
52 kg (114.7 lbs)
Suggested Power Amplifier
Recommended : K10DSP
Minimum : K3DSP
Accessories
polemount socket cover
(-W model only)
