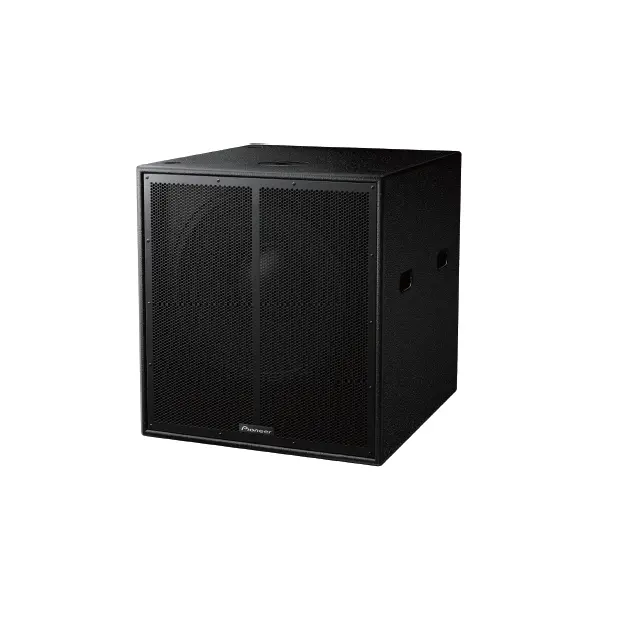

PIONEER XY-118S PRO AUDIO SPEAKERS

Features

• High-power subwoofer with an 18-inch, low-frequency driver.
• Capable of reproducing deep bass as low as 35 Hz without distortion.
• Strong pillars installed in the cabinet ensure rigidity against the most powerful bass.
• Requires an active crossover to set the necessary frequency range (presets can be provided from Pioneer for combinations using the Pioneer XY-152, XY-122, XY-101 and XY-81).
• NL4 INPUT and LINK OUT connections as standard.
• Pole mount for quick set-up with other Pioneer products.
• Robust enclosure made from premium multi-laminate birch plywood.

Product Specifications

General

• Loudspeaker Type:  Single driver, reflex-loaded subwoofer
• Frequency Response:  35 Hz – 150 Hz
• Sensitivity (1 W/1 m):  97 dB (half space)
• Nominal Impedance:  8 W
• Power Handling:  1000 W RMS, 2000 W Program
• Maximum SPL:  127 dB cont., 133 dB peak (half space)
• Driver Configuration:  18″ (457 mm) ferrite LF cone driver
• Connectors:  2 × Neutrik SpeakON™ NL4

Physical

• Dimensions (W×H×D):  590 mm × 643 mm × 650 mm / 23.2″ × 25.3″ × 25.6″
• Weight:  52.0 kg / 114.7 lbs.
• Rigging and Hardware
  • 4 × flush handles (2 left/2 right), 1 × M20 polemount socket for mid/high enclosures, 4 × rubber feet (bottom) and 4 ×mating recesses (top),
  • 16 × M8 holes with pre-inserted bolts for 4 ×castors on rear
• Grille:  Hex punched steel
• Enclosure:  18 mm (0.7″) birch plywood
• Finish:  Impact-resistant textured paint, XY-118S: Black
