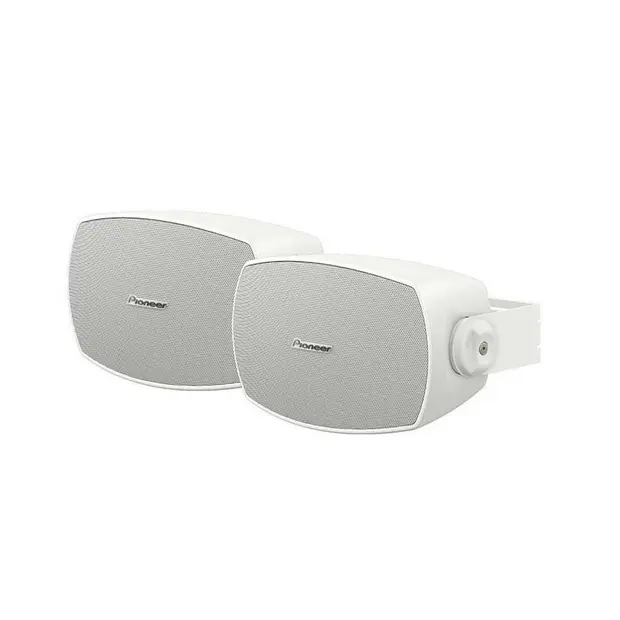

PIONEER CM-S54T-W nadgradni zvučnik

Waterproof wall speaker (on-wall)

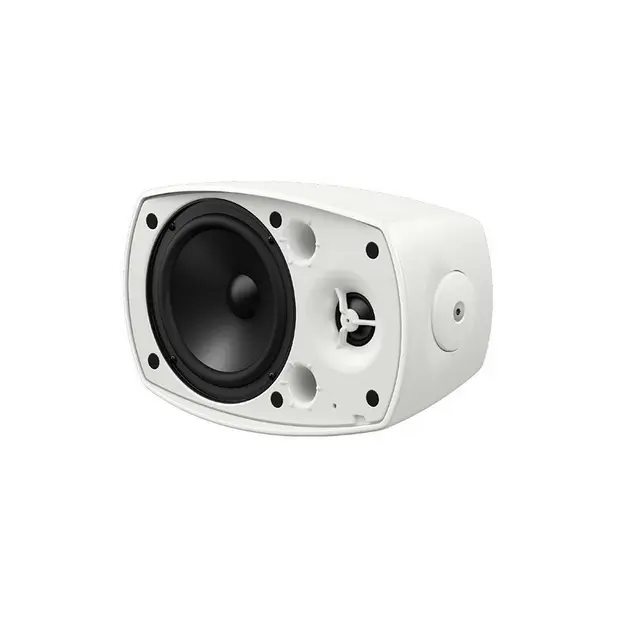

Soft Dome Tweeter
The newly developed 1-inch soft dome tweeter is the perfect component for delivering high-frequency, high-definition short duration. The CM-S54T has a 120×120° dispersion.

Newly developed Vortex bass booster
Discover warm bass with the newly developed Vortex bass booster. The bass-reflex port is constructed with ribs to ensure air flows without distortion, to maximize low frequencies and eliminate any unwanted vibrations.

Flexible impedance 8 Ω
Built-in transformer taps provide flexible impedance options. Whether you're using 70v/100v line systems or the situation calls for premium sound quality, you'll find the CM-S series versatile and easy to use.

Dust and water resistant
The CM-S54T are IP54 rated. The hard plastic housing and included protective terminal cover allow you to cover every inch of the room with sound, even in some outdoor areas.

U bracket
Rigid notches on the inside of the U-arm make it easy to adjust the sound direction. Correct the directivity by hand and, for extra security, secure with an Allen key or screwdriver. If you need an alternative, you can use the 60mm holes on the back of the speakers to fit them in more demanding spaces.

Original curved housing design
CM-S on-wall speakers fit beautifully into the design of any room thanks to their unique shape. Because they are neither square nor round, whether placed on a flat or curved surface, they fit in all spaces.

Flexible two-way loudspeaker with premium sound
Ideal for discreet placement in various spaces

Characteristics:

• Loudspeaker type: 2-way passive, reflex-loaded
• Frequency Response (-10 dB, Typical): 95 Hz – 20 kHz
• Sensitivity (1W/1m): 87 dB
• Nominal resistance: 8 Ω
• Power Handling (RMS): 40 W / 80 W
• Transformer Options:
               70V: 30W / 15W / 7.5W / 3.75W
               100V: 30W / 15W / 7.5W
• Dispersion: 120 °H × 120 °V
• Maximum SPL: 109 dB (peak) * Calculated from power handling and sensitivity
• LF: 4.5″ (114mm) cone
• HF: 1″ (25mm) silk dome tweeter.
• Connectors: Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
• Dimensions (W x H x D): 154.9 x 250.6 x 144.5 mm (6.10″ x 9.87″ x 5.69″)
• Weight/piece: 3.4 Kg (7.5 lbs)
• Waterproof: IP54
• Color: White and Black

Parts and Hardware

1 × U-bracket
2 × M6 threaded mounting points on the rear
Grille: Aluminum
Casing: PP
