HUB1408 (audio matrica)

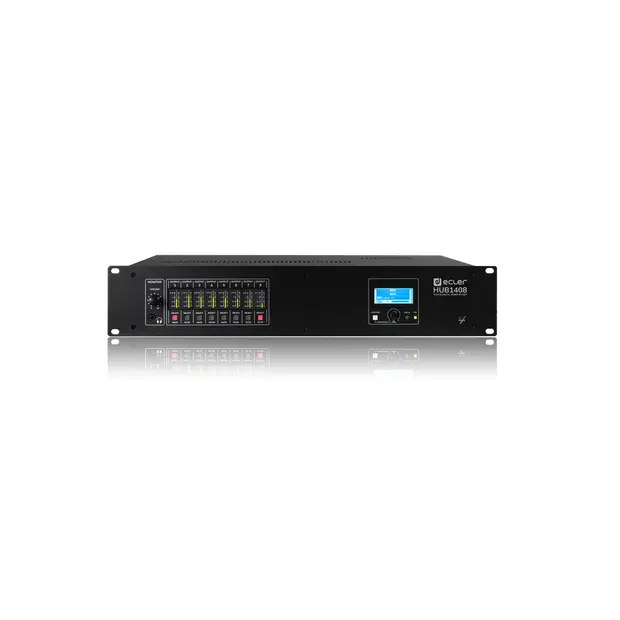

ECLER - digitalno audio pojačalo HUB1408

Digitalno audio pojačalo sa 14 ulaza i 8 izlaza.

Ima ugrađenu aplikaciju web-poslužitelja HANGAR za njegovu konfiguraciju, daljinsko upravljanje s fizičkih zidanih instalacijskih panela, pozivnih stanica i aplikacija za mobilne uređaje.

To je savršeno rješenje za bilo koju vrstu zvuka koji zahtijeva upravljanje i kontrolu različitih zona.

SPECIFIKACIJE

• 14 inputs, 8 outputs digital zoner with integrated DSP
• Easy programming and control by embedded web application, HANGAR, and standard web browser
• Control from the front panel and user remote control by: eMCONTROL1 wall panels (up to 8) / eMPAGE paging consoles (up to 2) / Ecler pilot application, compatible with Android and iOS:control graphic panels set to user needs (pilot panels) / TP-NET protocol (RS-232 interface with DB9 connector)for control and integrating with third party systems
• Control available, by zone (output): selection of audiosource (input), volume adjustment and MUTE, 3 band tone adjustment and general volume
• Four priority levels, ducker/pager functions
• Available DSP: frequency shifter, link stereo, delay,crossover filters, 8-band graphic EQ, compressor/limiterand much more
• Predefined setups for a quick installation (plug and play)
• MUTE port can be activated by closing the external dry contact, affecting programmed outputs to this effect

•

  Sampling rate

  48 kHz





  Resolution

  24 bit, AKM





  Latency

  <1.5 ms





  Frequency response

  <10Hz ~ 20kHz (+0dB / -0.5dB)





  Dynamic range

  AD:111dB, DA: 115dB



•

  Number of input ports

  2 (IN1-2), Line
  4 (IN3-6), Mic/Line
  8 (IN7-14), Remote





  Connection type

  Line: RCA female with Euroblock stack, Unbalanced
  Mic/Line: Euroblock (Symmetrical), Balanced
  Remote: RJ45 Connector, Balanced





  Input sensitivity

  Line: +5 / -15dBV External potentiometer adjustment
  Mic/Line: +0 / -50dBV External potentiometer adjustment
  Remote: 0dBV without adjustment

  Input impedanc

  Line: >13kΩ
  Mic/Line: >24kΩ electronically balanced
  Remote: >24kΩ electronically balanced



  Max input level

  12dBV



  THD + Noise

  < 0.005% (1kHz, 1Vrms)

  CMRR

  Mic/Line: >60dB (20Hz - 20kHz)
  Remote: >60dB (20Hz - 20kHz)

  Phantom power

  Mic/Line: +48VDC (rear panel switch)
