PIONEER TORAIZ SQUID

Additional information
176 En
Specifications
AC adapter
Power ................................................ AC 100 V to 240 V, 50 Hz/60 Hz
Rated current................................................................................0.4 A
Rated output .......................................................................DC 5 V, 2 A
General - Main Unit
Power consumption
DC IN .....................................................................DC 5 V, 1 200 mA
Main unit weight........................................................... 1.9 kg (4.2 lbs.)
Max. dimensions.... 374.8 mm (width) × 72.1 mm (height) × 223.9 mm
(depth) (14.8 in. (width) × 2.8 in. (height) ×
8.8 in. (depth)

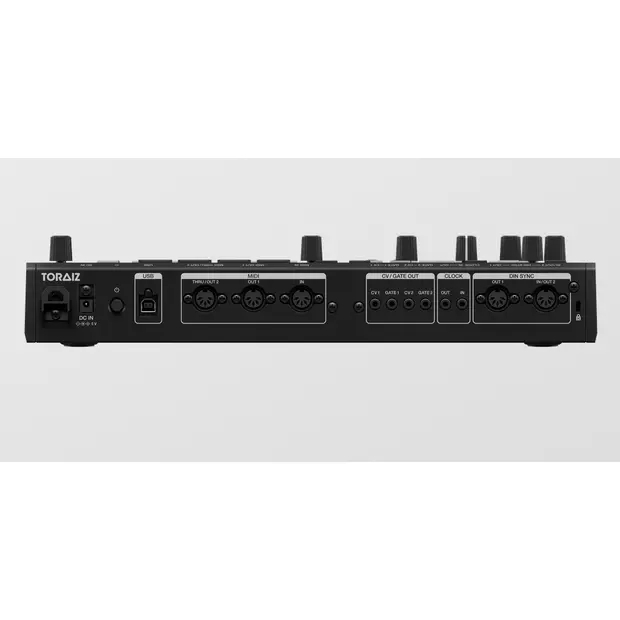

Input/output terminals
DIN SYNC IN/OUT2 input/output terminal
5-pin DIN ................................................................................... 1 set
DIN SYNC OUT1 output terminal
5-pin DIN ................................................................................... 1 set
CLOCK IN input terminal
1/8” stereo mini jack .................................................................. 1 set
CLOCK OUT output terminal
1/8” stereo mini jack .................................................................. 1 set
GATE OUT output terminal
1/8” mono mini jack ..................................................................2 sets
CV OUT output terminal
1/8” mono mini jack ..................................................................2 sets
MIDI IN input terminal
5-pin DIN ................................................................................... 1 se
